B.6. Cisco Traffic Anomaly Detector XT and Cisco Guard XT

Cisco Security products offer a family of solutions intended to mitigate DDoS attacks. Solutions come in two flavors:

The Detector learns normal traffic patterns and builds baseline models of normal activity over time, using proprietary Multi-Verification Process (MVP) architecture. The Detector stores state for each session (e.g., a TCP connection) and verifies each incoming packet within the context of its session state, source, destination, and protocol. Monitored traffic is compared to baseline models using proprietary MVP technology to detect anomalous behavior. Upon attack detection, the Detector provides its corresponding Guard product with information about the attack's target IP (or several target IPs). All traffic destined to the target IP is then diverted using proprietary Cisco technology through the Guard product, which examines each packet and classifies it as either legitimate or attack. The packet verification process again uses MVP architecture, and subjects each packet to five-stage inspection designed to identify and block the suspicious traffic while allowing legitimate packets to pass:

Filtering. The Guard initially enforces user-configurable static filters to block obvious and known attacks. Dynamic filters are defined and imposed in real time by later stages of the MVP process, based on specific anomalies detected during the inspection.
Active verification. The Guard uses proprietary mechanisms with a goal to detect and discard spoofed packets.
Anomaly recognition. This module monitors all traffic that has not been dropped by Filtering and Active Verification modules, and compares it to baseline models to detect anomalies. Baseline models attempt to capture legitimate behavior at source IP and protocol granularity, using numerous parameters, including the total traffic volume, distribution of packet sizes and port numbers, distribution of packet interarrival times, the number of concurrent flows, higher-level protocol characteristics, the ratio of inbound to outbound traffic, etc. Traffic that deviates significantly from the baseline is identified as attack. The Anomaly Recognition module then creates and imposes a series of dynamic filters at the Filtering module to block the newly discovered attack source.
Protocol analysis. This module processes flows identified as suspicious by the Anomaly Recognition module with a goal to identify application-specific attacks, such as incomplete or erroneous service requests. It then creates and imposes a series of dynamic filters at the Filtering module to block the newly discovered attack source.
Rate limiting. This module deploys per-flow and per-protocol traffic shaping, applying a target resource–specific policy. This policy is learned over time, with a goal of setting the appropriate rate limit without human intervention.

Figure B.9 depicts the Guard's attack mitigation process. The Guard looks for signs that the attack has stopped and then restores diverted traffic to its original path. Detector and Guard are designed to be used as stand-alone solutions, as well as in joint operation. Figure B.10 depicts a recommended deployment of Detector and Guard products within a network. Both Detector and Guard products claim to generate detailed traffic reports that can be used by operators to examine network usage or to perform attack forensics. Figures B.9, B.10, and the text in this section have been reproduced by Prentice Hall with the permission of Cisco Systems, Inc. Copyright © 2004 Cisco Systems, Inc. All rights reserved.

B.6. Cisco Traffic Anomaly Detector XT and Cisco Guard XT

Figure B.9. Attack mitigation process in Cisco Guard and Cisco Guard XT

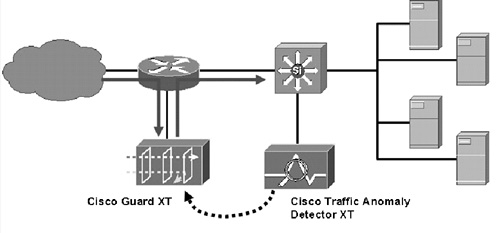

Figure B.10. A recommended deployment of Guard and Detector products within a network
